Touch Panel

We ensure greater transparency

In demanding applications, high-value touch panels are used as decentralized operating and display devices and for process visualization and optimization. They are available in scalable diagonals and for almost any mounting situation and are equipped with high-quality capacitive touch displays. Various interfaces are available for communication with control systems and peripheral devices as well as with hierarchical control systems.



  • High-quality visualization

    High-resolution displays with wide viewing angle offer best-possible image quality



  • Low-power to high-performance

    Scalable in display size and processor performance



  • Software-based solution

    Rely on our tools for quick and easy visualization



  • Easy configuration

    Sophisticated software tools for quick and easy panel adaptation in line with customer requirements



  • Multi-lingual

    Software tools with comprehensive language support



  • Long-term availability

    Investment security thanks to form, fit and function



  • Lifecycle management

    Professional support for extended product lifecycles



  • FAQ

    Frequently Asked Questions



WP Web Panel 4X, 6X

WP Web Panel 4X, 6X

Innovative Web Panel with QIWI Software Toolkit

  • Arm® i.MX8M Mini 4 Core 1.6 GHz
  • Arm® i.MX8M Plus 4 Core 1.6 GHz
  • Higher Performance with modern Arm® Quad Core CPU

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yoctro Distribution)
  • QIWI Toolkit
  • Optional CODESYS® SoftPLC

Technical Data

FunctionWP 4x with Arm® i.MX8M MiniWP 6x with Arm® i.MX8M Plus
Touch
PCAP Multitouch, flush glass surface
Processor
Arm® i.MX8M Mini 4 Core 1.6 GHzArm® i.MX8M Plus 4 Core 1.6 GHz
Memory
RAM1 GB DDR4 (up to 2 GB) 1 GB DDR4 (up to 2 GB)
FLASH4 GB eMMC (up to 32 GByte)4 GB eMMC (up to 32 GB)
microSD Card Slot (up to SDXC format)microSD Card Slot (up to SDXC format)
Interfaces
2x USB 2.0 (Host) 1x Ethernet (10/100/1000)2x USB 2.0 (Host) 1x Ethernet (10/100/1000)
Power Supply
24 V DC ±20 %
EMC
EN 61000-6-2 (immunity), EN 61000-6-4 (emission)
Certifications
CE (UL, cUL planned)CE, (UL/cUL planned)
Protection glass/Mechanical
Front IP65 in Aluminum, backside IP20 in stainless steel/Fixing elements for quick mounting (portrait or landscape) (Hoch- oder Querformat)
Environment
Operating temperature0 °C…+55 °C (optional -20 °C ... +55 °C)
CoolingFanless
ShockEN 60068-2-27: 15G 11ms (half sine)
VibrationEN 60068-2-6: 10-500Hz 1G/3 axis
Humidity10 % - 90 %, non-condensing
Software
Operating SoftwareEmbedded Linux (Yocto Distribution)Embedded Linux (Yocto Distribution)
BrowserChromium based HTML-5 Chromium based HTML-5
Additional SoftwareQIWI Toolkit, optimized browser, with easy configuration and wide range of featuresnd breite Funktionspalette
Options (Further options on request)
2x Ethernet, 1x RS232, 1x WIFI USB Dongle, anti-glare display, Customer logo on display framePoE (Power over Ethernet), 2x GBit Ethernet, 1x RS485, 2x GPO, WIFI USB Dongle, anti-glare display, customer logo on display frame
WP Web Panel 7", 10", 15"

WP Web Panel 7", 10", 15"

Innovative Web Panel with QIWI Software Toolkit

  • Arm® i.MX6 1 or 2 Cores 800 MHz
  • Arm® i.MX8M Mini 4 Cores 1.6 GHz
  • Intel Atom® E3800 2 Cores 1.33 GHz/4 Core 1.91 GHz

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yocto Distribution)
  • Embedded Linux (Debian Distribution) for IntelAtom
  • QIWI Toolkit
  • Optional iniNET MicroBrowser Spider Control
  • Optional CODESYS® SoftPLC


Technical Data

FunctionWP 3x with Arm® i.MX6WP 4x with Arm® i.MX8M MiniWP 5x with Intel Atom® E3800
Touch
PCAP Multi-touch, flush glass surface
Processor
Arm® i.MX6 1 or 2 Cores 800 MHzArm® i.MX8M Mini 4 Cores 1.6 GHzIntel Atom® E3800 2 Core 1.33 GHz / 4 Core 1.91 GHz
Memory
RAM1 GB DDR3 (up to 2 GB) 1 GB DDR4 (up to 2 GB)2 GB DDR3 (up to 8 GB)
FLASH512 MB NAND Flash4 GB eMMC (up to 32 GB) 16 GB eMMC (up to 32 GB)
microSD Card SlotmicroSD Card SlotmicroSD Card Slot
Interfaces
2x USB 2.0 (Host) 1x Ethernet (10/100)2x USB 2.0 (Host) 1x Ethernet (10/100/1000)2x USB 2.0 (Host) 1x Ethernet (10/100/1000)
Power supply
24 V DC ±20 %
EMC
EN 61000-6-2 (immunity), EN 61000-6-4 (emission)
Certifications
CECE, (UL/cUL planned)CE
Protection class/Mechanical
Front IP65 in aluminium, backside IP20 in stainless steel/Fixing elements for quick mounting (portrait or landscape)
Environment
Operating temperature0 °C…+55 °C
CoolingFanless
ShockEN 60068-2-27
VibrationEN 60068-2-6
Humidity10 % - 90 % @39 °C, non-condensing
Software
Operating systemEmbedded Linux (Yocto)Embedded Linux (Yocto)Embedded Linux (Debian)
BrowserChromium based HTML-5 or MicroBrowser (IniNet)Chromium based HTML-5Chromium based HTML-5
Additional informationQIWI Toolkit, optimized browser, easy Configuration and wide range of features
Options (Further options on request)
Stainless steel front, 2x Ethernet, 1x RS232, 1x RS485 WIFI USB DongleStainless steel front, 2x Ethernet, 1x RS232, WIFI USB DongleStainless steel front, 2x Ethernet, 1x RS232, 1x RS485 WIFI USB Dongle
Display information
Display size
7.0”10.1”15.6”
Resolution
1024 x 6001280 x 8001366 x 768
Typ
Opt. bondOpt. bondAir-gap
Format
17 : 1016 : 1016 : 9
Brightness
450 cd/m²430 cd/m²400 cd/m²
Viewing angle
85° / 85° / 85° / 85°80° / 80° / 80° / 80°85° / 80° / 85° / 85°
Colors
16.7 Million16.7 Million16.7 Million
Dimensions WP3x / WP 4x
200 x 132 x 48265 x 187 x 41405 x 254 x 60
CP Control Panel 6x

CP Control Panel 6x

Control Panel 6x with multiple connectivity

  • NXP Arm® i.MX8M Plus 4 Core, 1.6 GHz
  • 1 GB DRAM DDR3L
  • IPS, optical bonded

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS® SoftPLC

Technical Data

CP-70CP-101CP-156CP-156FHD
Display
IPS, optical bonded, see table below
Touch
TechnologyPCAP, glossy glass surface
Processor
CPUNXP Arm® i.MX8M Plus Quad Core, 1.6 GHz
Memory/Storage
DRAM DDR3L1 GByte, soldered (up to 4 GByte)
eMMC4 up to 32 GByte
NOR FLASH2 MByte (up to 16 MByte)
FRAM128 kByte (up to 512 kByte)
SD-CardmicroSD Card Slot (up to SDXC-size)
Interfaces
USB2x USB 2.0 (Host)
Ethernet2x Ethernet (10/100/1000) independant, 1x TSN-capable
CAN1x CAN-FD (isolated), optional: 2x CAN FD
Serial Ports1x RS232, 1x RS485 (isolated), optional: 2x RS485
Expansion Plugs optional: GPIO, HDMI, SPI, i²C, MIPI CSI 4-lane, Audio, M.2 Slot (Key E, B)
More Features
Security TPM
Real-Time ClockRTC with SuperCAP (>20 days)
Mechanical
ConstructionFront IP65 in aluminium, backside IP20 in stainless steel/aluminium
CoolingFanless
MountingFixing elements for easy and quick cabinet mounting
Environment
CertificationCE (UL/cUL planed)
Power24 V DC ±20 %
EMCEN 61000-6-2 (immunity), EN 61000-6-4 (emission)
Operating Temperature0 °C…+55 °C (optional -20 °C...+55 °C)
Storage Temperature-20 °C…+70 °C
Humidity10 %-90 % @39 °C, non-condensing
AltitudeUp to 9.800 ft (3000 m)
Software
Operating SystemEmbedded Linux (Yocto Distribution)
SOFT-PLC (Optional)CODESYS® V3
Protocols (Optional)EtherCAT, Modbus TCP/RTU, Profinet, Ethernet IP, CANopen, OPC UA, IIoT Libraries (MQTT, HTTPS, Azure, AWS, Google)
Display Informationen
Display Size
CP-70: 7.0"CP-101: 10.1"CP-156: 15.6"CP-156FD: 15,6"
Resolution
1024 x 6001280 x 8001366 x 7681920 x 1080
Format
17 : 1016 : 1016 : 916 : 9
Brightness
450 cd/m²420 cd/m²400 cd/m²600 cd/m²
Dimensions
200 x 132 x 48265 x 187 x 41405 x 254 x 60405 x 254 x 60
Viewing Angle
85° / 85°/ 85° / 85° 85° / 85°/ 85° / 85°85° / 85°/ 85° / 85°85° / 85°/ 85° / 85°
Colors
16,7 million16,7 million16,7 million16,7 million
Weight
0,83 kg1,3 kg3,5 kg3,5 kg
Consumption
5,5 VA8,9 VA16,8 VA20 VA

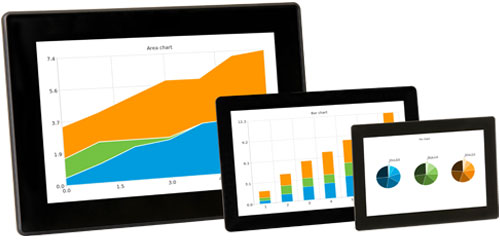

CP Control Panel 7", 10", 15"

CP Control Panel 7", 10", 15"

Control Panel with scalable performance

  • NXP Arm® i.MX6 1-2 Cores, 800 MHz
  • 1 GB DRAM DDR3L
  • Capacitive multi-touch

Request a quote

Accessories

  • No accessories

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS® SoftPLC

Technical Data

CP-70CP-101CP-156
Display
See table below
Touch
TechnologyPCAP, glossy glass surface
Processor
CPUNXP Arm® i.MX6 1-2 Cores, 800 MHz
Memory/Storage
DRAM DDR3L1 GByte, soldered (up to 2 GByte)
eMMC(4 to 16 GByte)
NAND/NOR FLASH512 MByte (256 MByte) / 1 MByte (up to 16 MByte)
SRAM/FRAM128 kByte (up to 512 kByte)/ (up to 512 kByte)
SD-CardmicroSD Card Slot, exchangeable (up to 32 GByte SDHC)
Interfaces
USB2x USB 2.0 (Host)
Ethernet2x Ethernet (10/100) independent
CAN1x CAN (isol.)
Serial Ports2x RS232, 1x RS485 (isol)
Expansion plugsGPIO, HDMI, SPI, I²C
Mechanical
ConstructionFront IP65 in aluminium, backside IP20 in stainless steel
CoolingFanless
MountingFixing elements for easy and quick cabinet mounting
Environment
CertificationCE
Power24 V DC ±20 %
EMVEN 61000-6-2 (immunity), EN 61000-6-4 (emission)
Operating temperature0 °C…+55 °C
Storage temperature-20 °C…+70 °C
Humidity10 %-90 % @39 °C, non-condensing
AltitudeUp to 6.500 ft (2000 m)
Software
Operating SystemEmbedded Linux (Yocto)
SOFTPLC (optional)CODESYS V3
Protocols (optional)EtherCAT, Modbus TCP/RTU, Profinet, Ethernet IP, CANopen, OPC UA
Display Information
Display size
CP-70: 7.0"CP-101: 10.1"CP-156: 15.6"
Resolution
1024 x 6001280 x 8001366 x 768
Format
17 : 1016 : 1016 : 9
Brightness
450 cd/m²420 cd/m²400 cd/m²
Dimensions
200 x 132 x 48265 x 187 x 41405 x 254 x 60
Viewing angle
85° / 85°/ 85° / 85° 85° / 85°/ 85° / 85°85° / 85°/ 85° / 85°
Colors
16.7 Million16.7 Million16.7 Million
Weight
0.83 kg1.3 kg3.5 kg
Consumption
5.5 VA8.9 VA16.8 VA
Display-Line 7" i.MX8M Mini

Display-Line 7" i.MX8M Mini

Touch Panel 7"

  • NXP i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz
  • 1x Arm® Cortex®-M4 @400 MHz
  • 4 GB LPDDR4-RAM

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS® SoftSPS

Technical Data

Human-Machine-Interface
FunctionStandard-LayoutOptions
FrontAluminium front frame
Display7" IPS, 1024 x 600 Pixel 450 cd/m²
Touch PCAP Multitouch
Other
Power supply24V DC ±20 %
Power consumptionLinux running <6 W
RTC bufferingCR1220
Debug1x Console
Dimensions (wxhxd)Alu front:200.1 x 131.9 x 46.5 mm
Temperature range0 °C…+55 °C
Protection classFront IP65, back IP20
CPU-Unit
CPUNXP i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz
Memory
LPDDR44x GB1x GB, 2x GB
NOR-FLASH2x MB
eMMC32 GB4 GB up to 64 GB
SD card1x microSD Card Slot
nv Memory8 kB (64 kB) EERAM
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0 B
DIO4x DIO (24 V/up to 800 mA)
Software
BootloaderU-Boot
Operating systemEmbedded Linux (Yocto Distribution)
RTC5ppm accuracy
Display-Line i.MX6 ULL

Display-Line i.MX6 ULL

Scalable Touch Panels Format 5“

  • NXP i.MX6 ULL 1x Arm® Cortex®-A7 @800 MHz
  • Glass front, frameless, 5“ TFT
  • 512 MB DDR3-RAM

Request a quote

Accessories

  • AC Connector Set
  • AC Power Supply
  • AC microSD

Software

  • Embedded Linux (Yocto Distribution)
  • Optional CODESYS® SoftPLC

Technical Data

Human-Machine-Interface
FunctionStandard-Layout
Glass frontFrameless
Display5“ TFT, 800 x 480 Pixel, 450 cd/m²
TouchPCAP Multitouch
Other
Power supply24 V DC ±20 %
Power consumptionLinux running <1,5 W
RTC BufferingCR1220
Debug1x Console
Dimensions (WxHxD)130 x 89 x 38 mm
Installation dimension (WxH)126 x 82 mm
Temperature range0 °C...+60 °C
Protection classFront IP65
CPU-Unit
CPUNXP i.MX6 ULL 1x Arm® Cortex®-A7 @800 MHz
Memory
DDR3-RAM512 MB
NAND-FLASH512 MB
NOR-FLASH1 MB
eMMC4 GB
SD-Card1x microSD Card Slot
nv Memory8 kByte nvSRAM
Communication
Ethernet2x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG
Serial1x RS232, 1x RS485
CAN1x CAN 2.0
DIO2x DIO (24 V/up to 800 mA)
AIO2x AIN (0...24 V)
Software
BootloaderU-Boot
Operating systemEmbedded Linux (Yocto Distribution)
RTC5ppm accuracy
Display-Line Pi-Tron CM4

Display-Line Pi-Tron CM4

Touch Panel 7" / available from Q2-2024

  • Broadcom BCM2711 4x Arm® Cortex®- A72 @1.5 GHz
  • 7" IPS Multitouch, 1024 x 600 Pixel 450cd/m2
  • Aluminium front frame, front IP65

Request a quote

Software

  • Raspian Linux

Technical Data

Human-Machine-Interface
FunctionStandard-LayouOptions
FrontAluminium front frame
Display7" IPS, 1024 x 600 Pixel 450 cd/m²
Touch PCAP Multitouch
Other
Power supply24V DC ±20 %
Power consumptionLinux running 7,2 W - 13,4 W
RTC bufferingCR2032
Debug1x Console
Dimensions (WxHxD)Alu-Front:200,1 x 131,9 x 46,5 mm
Temperature range*0 °C…+55 °C
Protection classFront IP65, back IP20
CPU-Unit
CPUBroadcom BCM2711, 4x Arm® Cortex®-A72 @1.5 GHz, 3D Video Engine
Memory
LPDDR42x GB1x GB, 4x GB, 8 GB
eMMCCompute Module CM4: 16 GBCM4: lite/8 GB/32 GB (lite: without eMMC only with microSD-Card)
SD-CardCM4 lite: 1x microSD Card Slot for Operating System, CM4 8GB, 16 GB, 32 GB: 1x micro SD Card Slot for data
EEPROM*4 kB (32kb)
Communication
Ethernet1x 1 Gbit/s, 1x 10/100 Mbit/s
USB2x 2.0 Host, 1x 2.0 OTG: only to programm eMMC
WLAN/Bluetooth®Optional 2.4 GHz/5.0 GHz, IEEE 802.11 b/g/n/ac wireless BT 5.0, BLE
Serial1x RS232, 1x RS485
CAN1x CAN 2.0B/FD
DIO4x DIO (24 V/up to 800 mA)
Display
LCD Interface1x HDMI 2.0 (up to 4Kp60 - HDMI0)
Software
Operating systemRaspian Linux
RTC± 1ppm accuracy
*Preliminary data
TM Touch Monitor

TM Touch Monitor

Customized touch monitor solutions with HDMI connection

  • From 5“ to 15.6“
  • HDMI connection for various resolutions including scaling
  • Custom housing and mounting systems

Request a quote

Accessories

  • No accessories

Software

  • No software

Technical Data

Touch-Monitor
Display
Size5" - 15." Displays (wide format)
Graphics processorRealtek RTD2483
Touch
TechnologyPCAP, multi-touch with glass surface
Interfaces
HDMIHDMI Type A, HDMI input with multiple resolution support. Image scaling can be enabled as an option.
TouchUSB 2.0 Type B, acts as HID device
Power supply24 V DC ±20 %
Mechanical
Housing designCustomized housing design for cabinet installation or stand-alone version for VESA- or support arm mounting, depending on customer needs
Environment
CertificationAccording to customer needs
Operating Temperature0 °C …+50 °C
Storage Temperature -25 °C …+60 °C
Humidity5 % - 95 % non-condensing
OEM Branding
FrontOptional OEM Logo on cover glass
LabelingOptional OEM type label according to customer specification
to top
